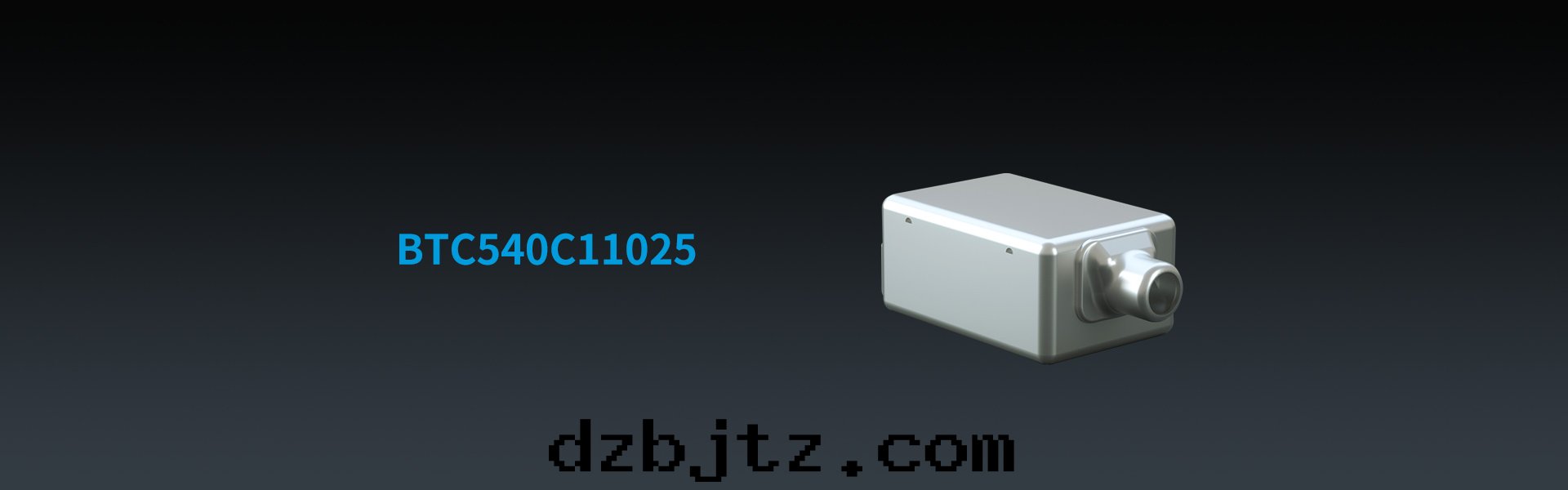

| Model | BTC540C11025 | DCR | 25.0Ω |

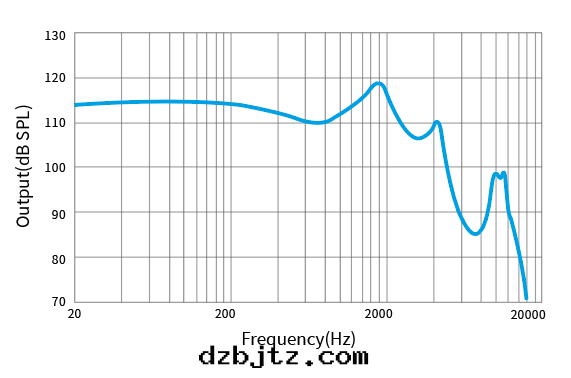

| Sensitivity | 111.0dB@1000Hz | MPO @ peak | 119.5dB |
| Nominal Drive | 146mV RMS | Acoustic Load | 10.0mm x 1.0mm tubing into IEC711 |

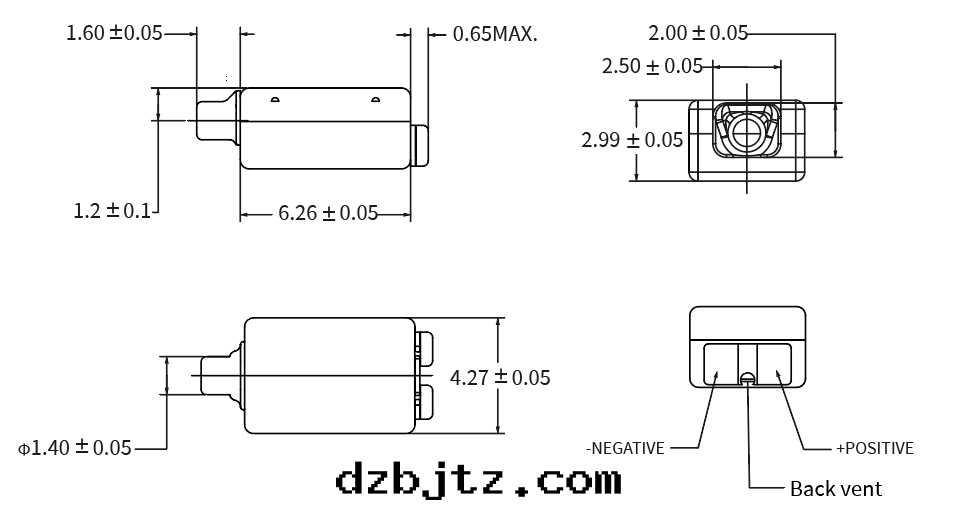

| Port Location | 12C | Back vent | YES |
